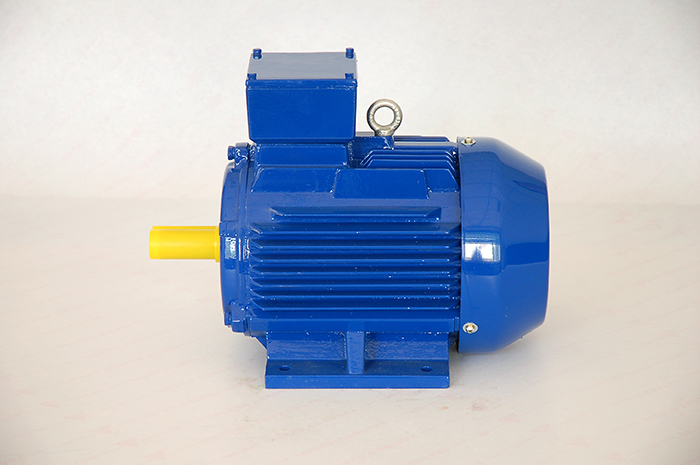

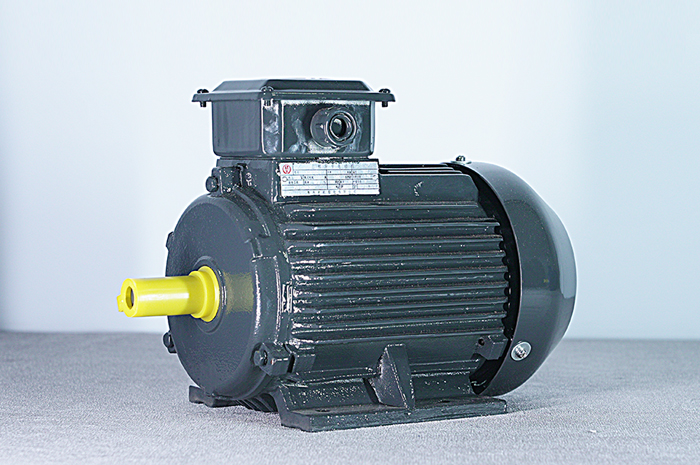

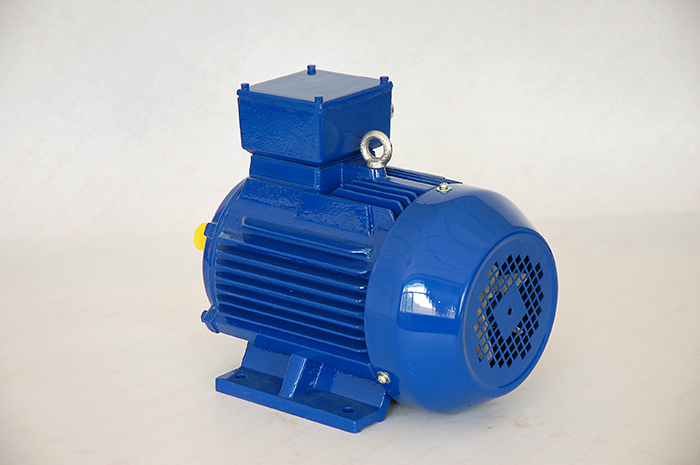

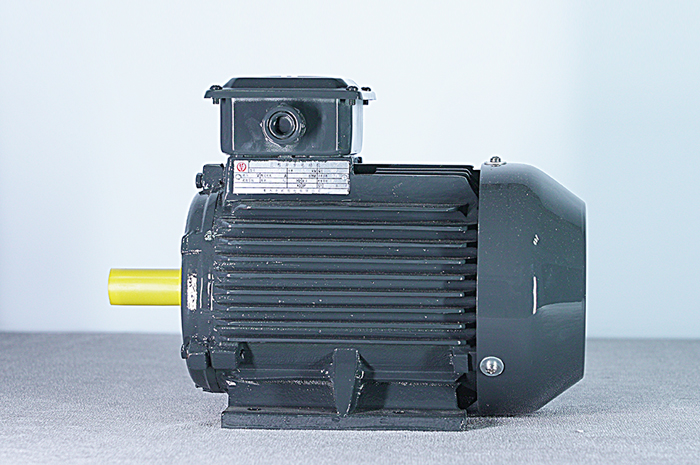

YE4系列三相異步電動機

我公司YE4系列三相異步電動機,執行JB/T  13299-2017《YE4系列(IP55)三相異步電動機技術條件(機座號80∽450)》標準,其效率指標與IEC60034中的(IE4)保持一致。該系列電動機是高效節能,環保型電動機,具有運行成本低,振動小,噪音低,可靠性高等特點,適用于驅動各種無特殊要求的機械設備。

該系列電動機額定電壓380V,額定頻率50Hz,防護等級IP55,冷卻方式IC411,采用F級絕緣,滿載溫升按B級考核,可以在海拔不超過1000米,溫度-15℃~40℃的環境下連續運行。我公司還可以按用戶要求設計、制造各種電壓、各種頻率、各種安裝方式的電動機;如220V、400V、415V、440V、660V電壓,60H頻率,海拔高于1000米等特殊要求超高效率電動機。

我公司愿和廣大用戶攜手,積極實現節能減排,共同創建綠色社會。

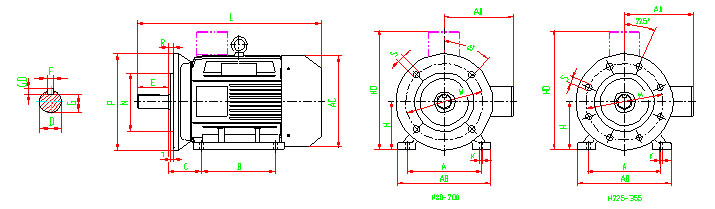

YE4系列三相異步電動機安裝及外形尺寸


THE DIMENSIONS OF MOUNTING AND CONTOUR FOR YE4 SERIES MOTORS

機座號

Frame size

極數Poles安裝尺寸(毫米)Mounting dimension(mm)外形尺寸(毫米)Contour dimension(mm)
HABCDEFGGDKMNPRSTABACADHDL
80M2、480125100501940615.56101651302000123.5165175145220305
90S2、4、6901401005624508207101651302000123.5180205170265390
90L901401255624508207101651302000123.5180205170265420
100L2、4、6、8100160140632860824712215180250014.54205215180270430
112M112190140702860824712215180250014.54230255200310475
132S1322161408938801033812265230300014.54270310230365575
132M1322161788938801033812265230300014.54270310230365590
160M160254210108421101237814.5300250350018.55320340260425760
160L160254254108421101237814.5300250350018.55320340260425760
180M180279241121481101442.5914.5300250350018.55355390285460825
180L180279279121481101442.5914.5300250350018.55355390285460825
200L2003183051335511016491018.5350300400018.55395445320520890
225S4、82253562861496014018531118.5400350450018.55435495350575865
225M22253563111495511016491018.5400350450018.55435495350575865
225M4、6、82253563111496014018531118.5400350450018.55435495350575865
250M22504063491686014018531124500450550018.55490550390635990
250M4、6、82504063491686514018581124500450550018.554905503906351075
280S22804573681906514018581124500450550018.555506304357051045
280S4、6、8280457368190751402067.51224500450550018.555506304357051045
280M22804574191906514018581124500450550018.555506304357051135
280M4、6、8280457419190751402067.51224500450550018.555506304357051135
315S2315508406216651401858112860055066002466356455308451240
315S4、6、8315508406216801702271142860055066002466356455308451350
315M2315508457216651401858112860055066002466356455308451270
315M4、6、8315508457216801702271142860055066002466356455308451380
315L2315508508216651401858112860055066002466356455308451240
315L4、6、8315508508216801702271142860055066002466356455308451350
355M2355610560254751402067.51228740680800024673071065510101505
355M4、6、83556105602549517025861428740680800024673071065510101535
355L2355610630254751402067.51228740680800024673071065510101505
355L4、6、83556106302549517025861428740680800024673071065510101535
  注:1.圖為B35型圖樣,機座帶底腳,端蓋上有凸緣。
        2.B3型電機機座帶底腳,端蓋上無凸緣,無尺寸M、N、P、S、T、LA。
        3.B5型電機機座無底腳,端蓋有凸緣,無尺寸A、B、C、AB、AA、BB、HA、K、H。
        4.H80-90無吊環。
Note:1.The drawing is B35 type with feet and flange.
          2.B3 type motors have feet but no flange,the dimensions have no M、N、P、S、T and LA.
          3.B5 type motors have flange but no feet,the dimensions have no A、B、C、AB、AA、BB、HA、K and H.
          4.H80-90 have no lifting bolts.



YE4系列電動機技術數據


YE4 SERIES  MOTORS TECHNICAL    SPECIFICATIONS
型號
額定功率

電流

(安培)

轉速

(轉/分)

效率

(%)

功率因數

(Cosφ)

最大轉矩
堵轉轉矩
堵轉電流
噪音限值

振動限值

(毫米/秒)

重量

(千克)

千瓦
馬力

額定轉矩

額定轉矩

額定電流
Type
Rated Output

Current

 (A)

Speed

(r/min)

Eff.

 (%)

Power

Factor

(Cosφ)

Max Torque
Locked Torque
Locked Current

Noise

Limit

dB(A)

Vibration

Limit

(mm/s)

Weight    (Kg)
KW
HP
Rated Torque
Rated Torque
Rated Current
YE4-80M1-2
0.75
1
1.64
2840
83.5
0.83
2.3
2.2
8.5
62
1.6
20
YE4-80M2-2
1.1
1.5
2.36
2840
85.2
0.83
2.3
2.2
8.5
62
1.6
23
YE4-90S-2
1.5
2
3.10
2840
86.5
0.85
2.3
2.2
9.0
67
1.6
26
YE4-90L-2
2.2
3
4.42
2840
88.0
0.86
2.3
2.2
9.0
67
1.6
32
YE4-100L-2
3
4
5.88
2860
89.1
0.87
2.3
2.2
9.5
74
1.6
41
YE4-112M-2
4
5.5
7.67
2880
90.0
0.88
2.3
2.2
9.5
77
1.6
51
YE4-132S1-2
5.5
7.5
10.4
2900
90.9
0.88
2.3
2.0
9.5
79
1.6
72
YE4-132S2-2
7.5
10
14.0
2900
91.7
0.89
2.3
2.0
9.5
79
1.6
81
YE4-160M1-2
11
15
20.3
2930
92.6
0.89
2.3
2.0
9.5
81
2.2
130
YE4-160M2-2
15
20
27.4
2930
93.3
0.89
2.3
2.0
9.5
81
2.2
140
YE4-160L-2
18.5
25
33.7
2930
93.7
0.89
2.3
2.0
9.5
81
2.2
180
YE4-180M-2
22
30
40.0
2940
94.0
0.89
2.3
2.0
9.5
83
2.2
208
YE4-200L1-2
30
40
54.2
2950
94.5
0.89
2.3
2.0
9.0
84
2.2
283
YE4-200L2-2
37
50
66.6
2950
94.8
0.89
2.3
2.0
9.0
84
2.2
305
YE4-225M-2
45
60
80.9
2960
95.0
0.89
2.3
2.0
9.0
86
2.2
375
YE4-250M-2
55
75
98.5
2965
95.3
0.89
2.3
2.0
9.0
89
2.2
485
YE4-280S-2
75
100
134
2970
95.6
0.89
2.3
1.8
8.5
91
2.2
690
YE4-280M-2
90
125
160
2970
95.8
0.89
2.3
1.8
8.5
91
2.2
715
YE4-315S-2
110
150
196
2975
96.0
0.89
2.3
1.8
8.5
92
2.8
1095
YE4-315M-2
132
175
234
2975
96.2
0.89
2.3
1.8
8.5
92
2.8
1225
YE4-315L1-2
160
220
284
2975
96.3
0.89
2.2
1.8
8.5
92
2.8
1395
YE4-315L2-2
200
270
354
2975
96.5
0.89
2.2
1.8
8.5
92
2.8
1590
YE4-355M-2
250
350
433
2980
96.5
0.91
2.2
1.6
8.5
97
2.8
2145
YE4-355L-2
315
425
545
2980
96.5
0.91
2.2
1.6
8.5
97
2.8
2440
YE4-80M1-4
0.55
0.75
1.34
1390
84.0
0.74
2.3
2.3
8.5
56
1.6
20
YE4-80M2-4
0.75
1
1.80
1390
85.7
0.74
2.3
2.3
8.5
56
1.6
21
YE4-90S-4
1.1
1.5
2.56
1390
87.2
0.75
2.3
2.3
8.5
59
1.6
26
YE4-90L-4
1.5
2
3.40
1390
88.2
0.76
2.3
2.3
9.0
59
1.6
30
YE4-100L1-4
2.2
3
4.73
1410
89.5
0.79
2.3
2.3
9.0
64
1.6
41
YE4-100L2-4
3
4
6.30
1410
90.4
0.80
2.3
2.3
9.5
64
1.6
46
YE4-112M-4
4
5.5
8.34
1435
91.1
0.80
2.3
2.3
9.5
65
1.6
58
YE4-132S-4
5.5
7.5
11.4
1440
91.9
0.80
2.3
2.0
9.5
71
1.6
75
YE4-132M-4
7.5
10
15.2
1440
92.6
0.81
2.3
2.0
9.5
71
1.6
85
YE4-160M-4
11
15
21.6
1460
93.3
0.83
2.3
2.0
9.5
73
2.2
140
YE4-160L-4
15
20
28.9
1460
93.9
0.84
2.3
2.0
9.5
73
2.2
161
YE4-180M-4
18.5
25
35.1
1470
94.2
0.85
2.3
2.0
9.5
76
2.2
210
YE4-180L-4
22
30
41.6
1470
94.5
0.85
2.3
2.0
9.5
76
2.2
231
YE4-200L-4
30
40
56.5
1470
94.9
0.85
2.3
2.0
9.0
76
2.2
295
YE4-225S-4
37
50
69.5
1475
95.2
0.85
2.3
2.0
9.0
78
2.2
360
YE4-225M-4
45
60
84.3
1475
95.4
0.85
2.3
2.0
9.0
78
2.2
391
YE4-250M-4
55
75
102
1480
95.7
0.86
2.3
2.0
9.0
79
2.2
512
YE4-280S-4
75
100
136
1480
96.0
0.87
2.3
2.0
8.5
80
2.2
670
YE4-280M-4
90
125
162
1480
96.1
0.88
2.3
2.0
8.5
80
2.2
880
YE4-315S-4
110
150
195
1480
96.3
0.89
2.2
1.8
8.5
88
2.8
1095
YE4-315M-4
132
175
234
1480
96.4
0.89
2.2
1.8
8.5
88
2.8
1360
YE4-315L1-4
160
220
280
1480
96.6
0.90
2.2
1.8
8.5
88
2.8
1340
YE4-315L2-4
200
270
349
1480
96.7
0.90
2.2
1.8
8.5
88
2.8
1740
YE4-355M-4
250
350
436
1490
96.7
0.90
2.2
1.8
8.5
92
2.8
2116
YE4-355L-4
315
425
550
1490
96.7
0.90
2.2
1.8
8.5
92
2.8
2381
YE4-90S-6
0.75
1
1.97
910
82.7
0.70
2.1
2.1
7.5
57
1.6
26
YE4-90L-6
1.1
1.5
2.83
910
84.5
0.70
2.1
2.1
7.5
57
1.6
35
YE4-100L-6
1.5
2
3.74
920
85.9
0.71
2.1
2.1
7.5
61
1.6
40
YE4-112M-6
2.2
3
5.39
935
87.4
0.71
2.1
2.1
7.5
65
1.6
53
YE4-132S-6
3
4
7.25
960
88.6
0.71
2.1
2.0
7.5
69
1.6
70
YE4-132M1-6
4
5.5
9.43
960
89.5
0.72
2.1
2.0
8.0
69
1.6
87
YE4-132M2-6
5.5
7.5
12.8
960
90.5
0.72
2.1
2.0
8.0
69
1.6
100
YE4-160M-6
7.5
10
16.4
970
91.3
0.76
2.1
2.0
8.0
73
2.2
130
YE4-160L-6
11
15
23.5
970
92.3
0.77
2.1
2.0
8.5
73
2.2
161
YE4-180L-6
15
20
30.7
970
92.9
0.80
2.1
2.0
8.5
73
2.2
225
YE4-200L1-6
18.5
25
37.6
980
93.4
0.80
2.1
2.0
8.5
73
2.2
282
YE4-200L2-6
22
30
44.0
980
93.7
0.81
2.1
2.0
8.5
73
2.2
295
YE4-225M-6
30
40
59.0
980
94.2
0.82
2.1
2.0
8.3
74
2.2
380
YE4-250M-6
37
50
71.7
980
94.5
0.83
2.1
2.0
8.3
76
2.2
460
YE4-280S-6
45
60
86.9
980
94.8
0.83
2.0
2.0
8.5
78
2.2
590
YE4-280M-6
55
75
105
980
95.1
0.84
2.0
2.0
8.5
78
2.2
675
YE4-315S-6
75
100
142
985
95.4
0.84
2.0
1.6
8.0
83
2.8
1095
YE4-315M-6
90
125
168
985
95.6
0.85
2.0
1.6
8.0
83
2.8
1170
YE4-315L1-6
110
150
205
985
95.8
0.85
2.0
1.6
8.0
83
2.8
1225
YE4-315L2-6
132
175
243
985
96.0
0.86
2.0
1.6
8.0
83
2.8
1360
YE4-355M1-6
160
220
294
990
96.2
0.86
2.0
1.6
8.0
85
2.8
2020
YE4-355M2-6
200
270
367
990
96.3
0.86
2.0
1.6
8.0
85
2.8
2231
YE4-355L-6
250
350
458
990
96.5
0.86
2.0
1.6
8.0
85
2.8
2381
YE4-100L1-8
0.75
1
2.20
680
78.4
0.66
2.0
2.0
7.0
59
1.6
42
YE4-100L2-8
1.1
1.5
3.09
680
80.8
0.67
2.0
2.0
7.0
59
1.6
44
YE4-112M-8
1.5
2
4.00
690
82.6
0.69
2.0
2.0
7.0
61
1.6
63
YE4-132S-8
2.2
3
5.65
705
84.5
0.70
2.0
1.8
7.5
64
1.6
76
YE4-132M-8
3
4
7.58
705
85.9
0.70
2.0
1.8
7.8
64
1.6
87
YE4-160M1-8
4
5.5
9.83
720
87.1
0.71
2.0
1.8
7.9
68
2.2
120
YE4-160M2-8
5.5
7.5
13.1
720
88.3
0.72
2.0
1.8
8.1
68
2.2
135
YE4-160L-8
7.5
10
17.2
720
89.3
0.74
2.0
1.8
7.8
68
2.2
155
YE4-180L-8
11
15
25.0
730
90.4
0.74
2.0
1.8
7.9
70
2.2
225
YE4-200L-8
15
20
33.3
730
91.2
0.75
2.0
1.8
8.0
73
2.2
276
YE4-225S-8
18.5
25
40.9
730
91.7
0.75
2.0
1.8
8.1
73
2.2
310
YE4-225M-8
22
30
47.8
730
92.1
0.76
2.0
1.8
8.3
73
2.2
445
YE4-250M-8
30
40
63.9
735
92.7
0.77
2.0
1.8
7.9
75
2.2
506
YE4-280S-8
37
50
77.4
735
93.1
0.78
2.0
1.8
7.9
76
2.2
585
YE4-280M-8
45
60
93.9
735
93.4
0.78
2.0
1.8
7.9
76
2.2
640
YE4-315S-8
55
75
111
735
93.7
0.80
2.0
1.6
8.2
82
2.8
1020
YE4-315M-8
75
100
151
735
94.2
0.80
2.0
1.6
7.6
82
2.8
1170
YE4-315L1-8
90
125
179
735
94.4
0.81
2.0
1.6
7.7
82
2.8
1300
YE4-315L2-8
110
150
218
735
94.7
0.81
2.0
1.6
7.7
82
2.8
1520
YE4-355M1-8
132
175
261
740
94.9
0.81
2.0
1.6
7.7
89
2.8
1955
YE4-355M2-8
160
220
312
740
95.1
0.82
2.0
1.6
7.7
89
2.8
2065
YE4-355L-8
200
270
388
740
95.4
0.82
2.0
1.6
7.8
89
2.8
2185
注:重量為吊裝時的參考重量,以實物為準。
